C Cam & Groove Couplings for Liquid, Bulk, and Chemical Transfer
“CAMPBELL COBRA” VS.
“STANDARD COBRA”
“COBRA” is the trade name for our entire
line of cam & groove couplings. “Campbell
COBRA” is the upgraded versions of Parts C
and E. Although imported, Campbell
COBRA C’s and E’s are designed by
Campbell and produced to strict
Campbell specifications.
Features & Benefits
• Designed for use with Campbell
Interlocking Ferrules.
• 360° interlock groove on fitting locks
ferrule into place for the ultimate in
holding power.
• Shank and ferrule lengths are matched for
performance and to avoid potential hose
tube or hose cover damage (right).
• Serrations designed to grip, seal, and
protect hose when crimped. Note:
Traditional “two bump” designs are
for banding, not crimping. Campbell
does not recommend crimping on
“two bump” shanks.
• Crimped assemblies are low profile and
eliminate sharp edges from clamp buckles.
• Couplings use the same ferrules as
Crimpnology Nipples, ChemJoint
Couplings, and Goodyear InstaLock Cam
& Groove Couplings to keep your inventory
as flexible as possible.
• Designed to couple and interchange
with couplings made to ASTM F1122,
CID A-A-59326, MIL-C-27487.
Recommended
Hose Attachment
• Interlocking ferrules
Recommended Use
• Multi-purpose liquid, chemical,
bulk handling
CampbellCrimpnology™
offers crimping flexibility for
your liquid, bulk, and chemical
transfer hose applications.

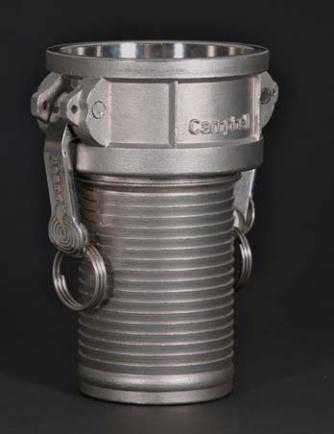

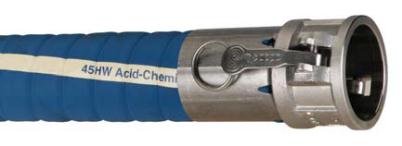

Campbell Cobra Part C and matching
Campbell Interlocking Ferrule

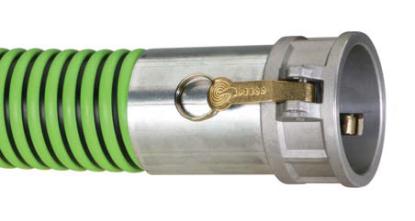

Locking Handle
Campbell
COBRA

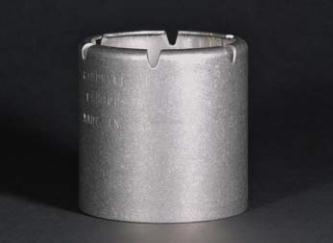

Ferrule
zone:
3-15/16”
Ferrule
length:
3-15/16”
Campbell COBRA Cam & Groove (SS)4 Ferrule Chem/Rubber – – 250 – 250 250 150 150 100 – –
Campbell COBRA Cam & Groove (Alum)4 Ferrule Chem/Rubber – – – – 225 200 150 125 75 – –
Hose System Components Hose Size
Fitting/Coupling Attachment Hose Type2 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 6 8
MAX. SYSTEM WORKING PRESSURE (PSI @ 70°F) SEE NOTE 1
See footnotes 1, 2, and 5 on Page 1
Special Feature

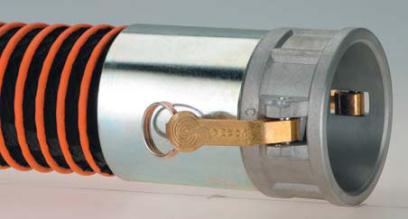

• Locking handles (right)
can be purchased
assembled onto the
coupling or as a kit and
retrofitted onto existing
inventory ... another
easy and cost-effective
way to keep inventory
flexible.
