METAL TUBE PROGRAM
Copyright © 2002-2007 57 BrakeQuip

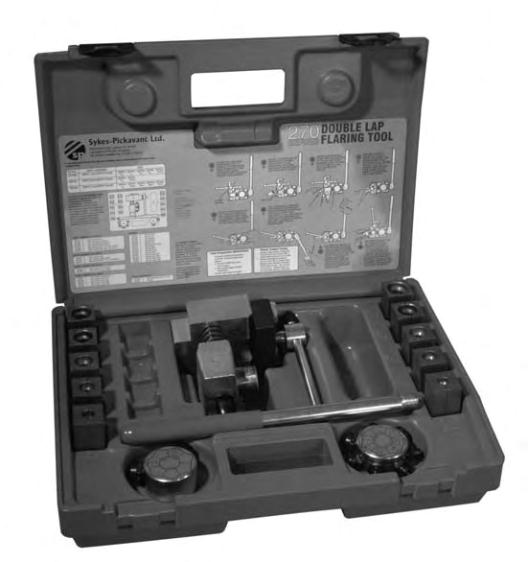

Double Flaring Tool has become the industry standard for its speed, accuracy, and
reliability. It produces convex and double flares to SAE and DIN standards on all light
wall annealed tubing.
This Double Flaring Tool:
• Creates single and double flares on tube sizes 3/16" - 1/4" - 5/16" - 3/8" - 1/2" – 6mm – 8mm – 10mm – 12mm
and the special 4.75mm DIN single flares found on European vehicles
• Punch turrets has OP-1 and OP-2 punches positioned side by side for efficiency
• Produces flares in a matter of seconds
• Provides the convenience and efficiency of lever cam operation
• Features automatic punch extraction
• Screw clamp for accurate die alignment
• Comes in a rugged plastic case
Fastest Flaring Tool in the West
BQ27008
TUBE SIZE DIE NO. PUNCH NO.
4.75mm BQ27041 BQ27061
6mm BQ27047 BQ27062
8mm BQ27048 BQ27063
10mm BQ27049 BQ27064
12mm BQ27050 BQ27065
DIN Flare
Die & Punch Guide
TUBE SIZE DIE NO. PUNCH NO. OP.- 1 PUNCH NO. OP.- 2
3/16" BQ27031 BQ27051 BQ27071
1/4" BQ27032 BQ27052 BQ27071
5/16" BQ27033 BQ27053 BQ27072
3/8" BQ27034 BQ27054 BQ27072
1/2" BQ27035 BQ27055 BQ27073
6mm BQ27042 BQ27052 BQ27071
8mm BQ27043 BQ27053 BQ27072
10mm BQ27044 BQ27054 BQ27072
12mm BQ27045 BQ27055 BQ27073
Bubble & Double Flare
SAE (Single), “Bubble”
DIN (Single), “Mushroom”
SAE/DIN (Double)
Flare Reference
