STAINLESS STEEL BRAIDED HOSE & ACCESSORIES
Copyright © 2002-2007 55 BrakeQuip
BQ56ASS 3Way Tube Tee - 3/8" x 24NF - 5/16" mount hole
BQ111SS Female Tube Joiner - 7/16" x 24NS
BQ2577SS Tube Nut Male (7/16" x 24NS - 1/4")
BQ3052SS Brake Hose Retaining Clip
BQ4511SS Tube Nut Male (M10 x 1 - 3/16")
BQ4513SS Tube Nut Male (M12 x 1 - 1/4")
BQ5555SS Tube Nut Male (3/8" x 24NF - 3/16")
BQ5842SS Tube Nut Male (7/16" x 24NS - 3/16")
BQ8093SS Banjo Bolt - 3/8" x 24NF x 1"L
BQ8095SS Banjo Bolt - M10 x 1 x 1"L
BQ8099SS Banjo Bolt - M10 x 1.25 x 1"L
HF01SS Fitting - Lifesaver - 3/16" Countersink
HF06SS Fitting - Male Swivel Nut 7/16" x 24NS (90˚)
HF07SS Fitting - Male Swivel Nut 7/16" x 24NS (45˚)
HF09SS Fitting - Female Swivel Nut 3/8" x 24NF (Straight)
HF10SS Fitting - Female Swivel Nut 3/8" x 24NF (45˚)
HF11SS Fitting - Female Swivel Nut 3/8" x 24NF (90˚)
HF12SS Fitting - Female Swivel Nut 7/16" x 20NF (Straight)
HF13SS Fitting - Female Swivel Nut 7/16" x 20NF (45˚)
HF14SS Fitting - Female Swivel Nut 7/16" x 20NF (90˚)
HF15SS Fitting - Male Swivel Nut 7/16" x 24NS
HF16SS Fitting - Male Swivel Nut 3/8" x 24NF
HF17SS Fitting - Male Swivel Nut 3/8" x 24NF (90˚)
HF30SS Fitting - 3/16" Compression
HF31SS Fitting - 1/4" Compression
HF33SS Fitting - Male Swivel Nut 3/8" x 24NF (45˚)
HFB09SS Fitting - Banjo 10 x 10mm
HFB34SS Fitting - Banjo 10 x 8mm (Extra long Neck)
HFB37SS Fitting - Banjo 10 x 10mm (Extra long Neck)
HFIF01SS Fitting - Female 3/8" x 24NF
HFIF02SS Fitting - Female 7/16" x 24NS
HFIM01SS Fitting - Male 3/8" x 24NF Short
HFIM03SS Fitting - Male 7/16" x 20NF Short
HFIM19SS Fitting - Male 1/8" x 27NPTF
HFMF04SS Fitting - Female M10 x 1 (17mm Flats)
HFMM06SS Fitting - Male M10 x 1 (Short)

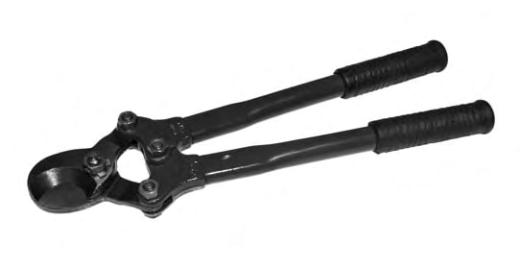

Heavy duty shears for a clean cut every time – Portable & light weight for
ease of use – Suitable for cutting hose to 1/2" OD.
Replacement jaws available (BQ2006A).
BQ2006
Stainless Steel Braided Hose Shears

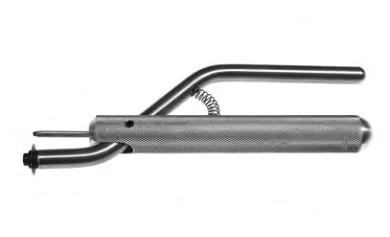

This handy tool is the ultimate tool for skiving the
jacket off 1/8" ID braided hose – cuts cleanly and square to the correct
length every time. The incorporated mandrel also acts as a hose expander
to help with the installation of the fitting. Made in the USA.
BQ36
Skiving Tool
TOOLS
BQ1019
Fitting Joint Supports
Ideal for the pre-installation of fittings into 1/8" ID Teflon braided hose.
Three sided tool fits into a drill chuck for easy application. Simply place
tool into drill chuck & rotate into end of hose.
BQ15BK High Temp Material - Black
BQ15BL High Temp Material - Blue
BQ15GR High Temp Material - Green
BQ15GY High Temp Material - Grey
BQ15RD High Temp Material - Red
BQ16 Aluminum (Off Road Use Only)
PART NO. DESCRIPTION
BQ42525
PART NO. DESCRIPTION

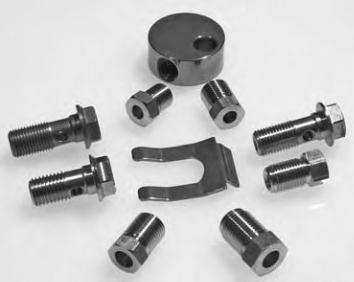

Polished Stainless Steel Fittings
Allows you to adapt
center fittings and
accessories to
non-
jacketed
hose available in
10' lengths.
Replacement
Cutting Wheel
BQ2006B
Mount bracket
allows you to secure
shears so that you
can cut hose with
one hand.
Clear Center Fitting
Adapter Tube
BQ310
Allows you to adapt
center fittings and
accessories to
jacketed
hose
available in
10' lengths.
BQ311
Hose Expander
BQ2006A
BQ301 1/8" ID Nil
BQ303 1/8" ID Clear
BQ303BK 1/8" ID Smoke/Black
BQ303BL 1/8" ID Blue
BQ303GR 1/8" ID Green
BQ303RD 1/8" ID Red
PART NO. SIZE JACKET COLOR

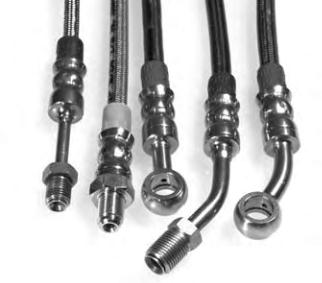

Stainless Steel Braided
Brake Hose
Complete your brake plumbing job with
stainless steel fittings for non-rusting
durability. Polished finish for the chrome
like look.
