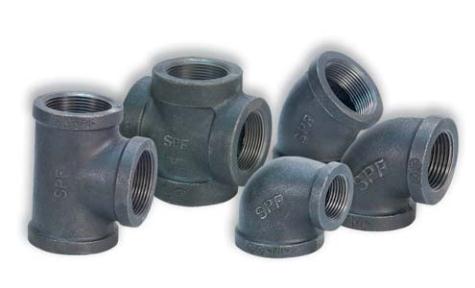

spf malleable iron fittings
Class 150 (Standard)
6
www.anvilintl.com

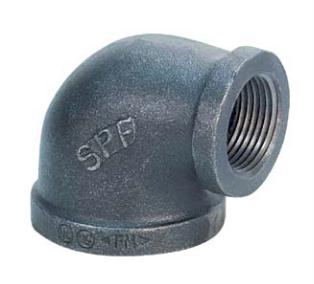

90˚ REDUCING ELBOW
Size
A
B
Weight
in
in
in
lbs
1
⁄
4
x
1
⁄
8
0.74
0.76
0.08
3
⁄
8
x
1
⁄
8
0.81
0.85
0.11
3
⁄
8
x
1
⁄
4
0.88
0.90
0.13
1
⁄
2
x
1
⁄
4
0.97
0.98
0.16
1
⁄
2
x
3
⁄
8
1.04
1.03
0.19
3
⁄
4
x
3
⁄
8
1.12
1.13
0.26
3
⁄
4
x
1
⁄
2
1.20
1.22
0.29
1 x
3
⁄
8
1.18
1.26
0.35
1 x
1
⁄
2
1.26
1.36
0.42
1 x
3
⁄
4
1.37
1.45
0.47
1
1
⁄
4
x
1
⁄
2
1.34
1.53
0.54
1
1
⁄
4
x
3
⁄
4
1.45
1.62
0.62
1
1
⁄
4
x 1
1.58
1.67
0.73
1
1
⁄
2
x
1
⁄
2
1.38
1.65
0.65
1
1
⁄
2
x
3
⁄
4
1.52
1.75
0.74
1
1
⁄
2
x 1
1.65
1.80
0.88
1
1
⁄
2
x 1
1
⁄
4
1.82
1.88
1.03
2 x
1
⁄
2
1.50
1.89
0.93
2 x
3
⁄
4
1.60
1.97
1.04
2 x 1
1.73
2.02
1.28
2 x 1
1
⁄
4
1.90
2.10
1.36
2 x 1
1
⁄
2
2.02
2.16
1.51
2
1
⁄
2
x 1
1
⁄
2
2.16
2.51
2.20
2
1
⁄
2
x 2
2.39
2.60
2.55
3 x 2
2.52
2.89
3.35
3 x 2
1
⁄
2
2.83
2.99
4.12
4 x 2
2.72
3.43
5.01
4 x 3
3.30
3.60
6.65
A
B
Standards & Specifications
Import Malleable Iron Screwed Fittings (Class 150)
Dimensional:
Fittings:
ASME B16.3
Unions:
ASME B 16.39
Bushings/Plugs:
ASME B 16.14
Material:
ASTM A-197
Galvanizing:
ASTM A-153
(Hot Dip Galvanizing)
Threading:*
ASME B 1.20.1
Pressure Rating:
Fittings:
ASME B 16.3
Unions:
ASME B 16.39
Bushings/Plugs:
ASME B 16.14
Pressure Testing:
All malleable iron fittings are tested for through wall porosity using an air under water process.
Agency Approvals: All malleable iron fittings and unions are UL Listed and FM Approved.
*British Standard threading per BS 21 available upon request.
SPF - 3.10
