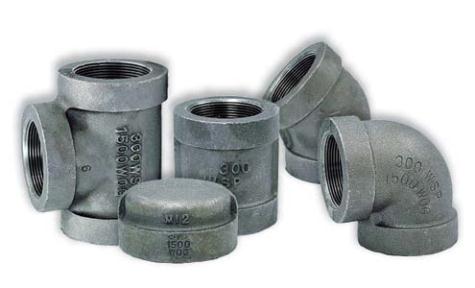

spf malleable iron fittings
www.anvilintl.com
15
90˚ ELBOW
Size
A
Weight
in
in
lbs
1
⁄
4
0.94
0.20
3
⁄
8
1.06
0.29
1
⁄
2
1.25
0.47
3
⁄
4
1.44
0.66
1
1.63
1.20
1
1
⁄
4
1.94
1.90
1
1
⁄
2
2.13
2.50
2
2.50
4.20
2
1
⁄
2
2.94
5.30
3
3.38
9.70
4
4.50
16.00
Class 300 (Extra Heavy)
Standards & Specifications
Malleable Iron Screwed Fittings (Class 300)
Dimensional:
Fittings:
ASME B16.3
Unions:
ASME B 16.39
Bushings/Plugs:
ASME B 16.14
Material:
ASTM A-197
Galvanizing:
ASTM A-153
(Hot Dip Galvanizing)
Threading:
ASME B 1.20.1
Pressure Rating:
Fittings:
ASME B 16.3
Unions:
ASME B 16.39
Bushings/Plugs:
ASME B 16.14
Pressure Testing:
All malleable iron fittings are tested for through wall porosity using an air under water process.
Agency Approvals: All malleable iron fittings and unions are UL Listed and FM Approved.
90˚ REDUCING ELBOW
Size
A
B
Weight
in
in
in
lbs
1
⁄
2
x
3
⁄
8
1.19
1.19
0.41
1 x
3
⁄
4
1.50
1.56
1.00
A
B
A
A
SPF - 3.10
