Cast Iron Threaded Fittings Pressure - Temperature Ratings
Temperature Pressure
Class 125 Class 250
(°F) (°C) psi bar psi bar
-20° to 150° -28.9 to 65.6 175 12.1 400 27.6
200° 93.3 165 11.4 370 25.5
250° 121.1 150 10.3 340 23.4
300° 148.9 140 9.7 310 21.4
350° 176.7 125 8.6 300 20.7
400° 204.4 – – 250 17.2

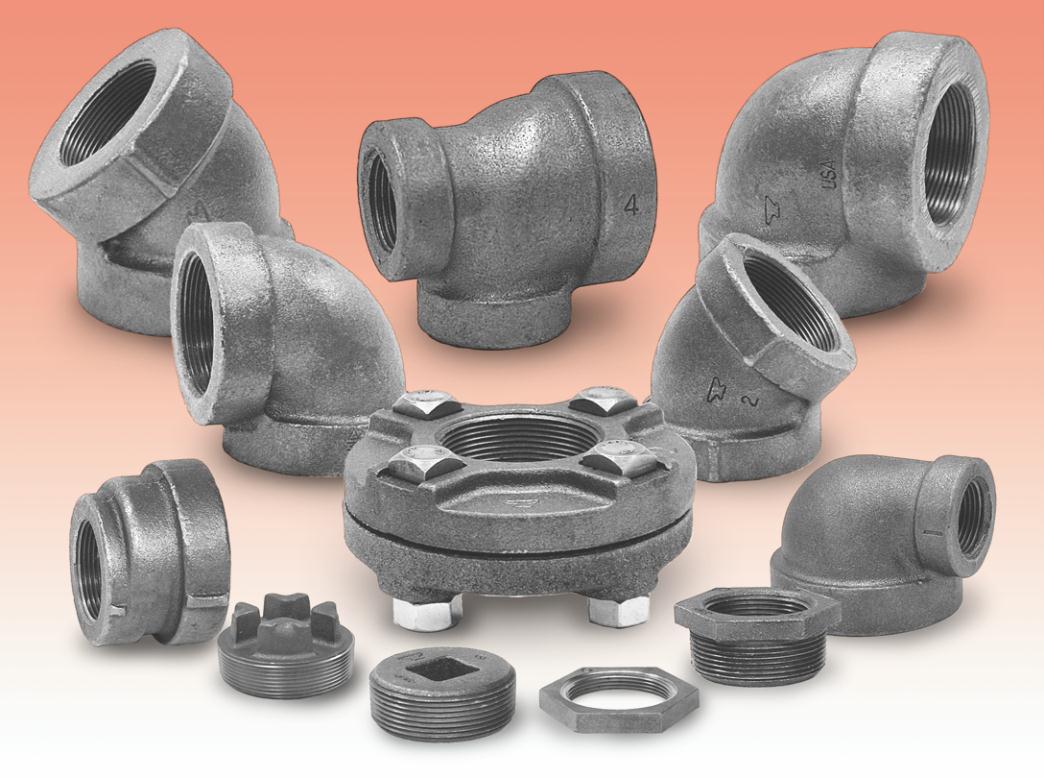

Anvil standard and extra heavy cast iron threaded fttings are
manufactured in accordance with ASME-B16.4 (except plugs
and bushings, ASME B16.14). Dimensions also conform to Federal
Specifcations, WW-P-501 (except plugs and bushings WW-P-471).
For Listings/Approval Details and Limitations, visit our website @
www.anvilintl.com or contact an Anvil/AnvilStar Sales Representative.
