Oil Country Fittings
Bell Nipples and Tubing Nipples
Tubing Nipples
Standard Weight
Size
End Connection
NPS DN
18" and shorter
upset and non-upset
1 25
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
1
1
⁄
4
32
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
1
1
⁄
2
40
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
2 50
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
2
1
⁄
2
65
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
3 80
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
4 100
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
Tubing Nipples
Extra Heavy Weight
Size
End Connection
NPS DN
18" and shorter
upset and non-upset
1 25
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
1
1
⁄
4
32
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
1
1
⁄
2
40
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
2 50
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
2
1
⁄
2
65
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
3 80
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)
4 100
Upset A.P.I. Thds, One or Both Ends
Non-upset (Regular)

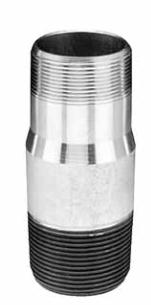

Tubing Nipples
• Tubing Nominal Sizes 1 – 4
(25 – 100 DN)
upset and non-upset ends
• Lengths are 4" – 18"
(102mm–457mm)
• Tubing nipples are available with any combination of API 5B threads (8Rd, l0Rd, 11
1
⁄
2
V, 8V, etc) and are available in grades J-55,
K-55, N-80 and L-80 API 5CT material grades
• Wall thicknesses available: standard, extra heavy, double extra heavy
• For different grades of material (stainless, brass, etc.) and different threads, consult factory
Standard and XH Weight available in standard lengths 4", 6", 8", 10", 12", 14", 16", 18." Also, available in non-standard lengths.
Bell Nipples

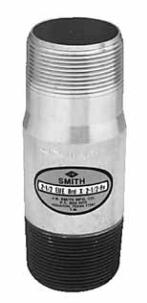

• J.B. Smith manufactures a full line of Bell Nipples in sizes 4
1
/
2
" - 8
5
/
8
" NPS from K55 raw materials
• Bell Nipples are 8 RD threaded (short or long) by slip joint end connections.
• Full traceability and mill certifcation available upon request at time of order.
Bell Nipples
O.D. Size
Weight
NPS
DN
lbs
kg
4
1
⁄
2
114
4.5
2.0
5
1
⁄
2
140
9.0
4.1
7
175
13.0
6.0
8
5
⁄
8
219
15.0
6.8
