www.anvilintl.com
149
j.B. Smith products
Malleable Iron
Cast Iron
Small Steel
Fittings
Pipe Nipples &
Pipe Couplings
Forged Steel
Fittings & Unions
Anvilets
Catawissa
J.B. Smith Products
Carton Information
Carbon Steel
Swage Nipples
Line Pipe Swages
• Nominal Pipe Size range
1
⁄
8
– 8 NPS
(6 – 200 DN)
• Manufactured from A106 Gr. B seamless pipe or hex bar and
processed in accordance to ASTM A234 Gr. WPB
• Choice of material depends upon size and reduction
• Available in standard, extra heavy, double extra heavy or
schedule 160
• End fnishes available: NPT, weld beveled, squared cut
(for socket weld) or grooved
• Available concentric and eccentric
• 1"
(25mm)
and smaller are made from hex bar
• 1
1
⁄
4
"
(32mm)
and larger are made from pipe
Select sizes of 1 NPS (25 DN) and smaller swages in XS/XH and Schedule 160 weights available in A106.
All sizes on this page have been processed in a manner strictly conforming to the requirements of ASTM A234 from material fully meeting all requirements of that specifcation. The correct marking for swage
nipples to denote conformance with this specifcation is “WPB”.
All sizes 1 NPS (25 DN) and smaller will be made from hex barstock. Most sizes 1
1
⁄
4
NPS (32 DN) and larger will be made from pipe, and where pipe is not a practical raw material, round barstock will be used. No
sacrifce of properties will result from such practice.

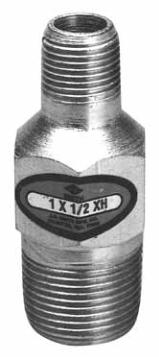

Concentric
Swage Nipples
Size
Length Standard
Weight
XS/XH
Weight
XXS/XXH
& Sch. 160
Weight
Pipe API or O.D.
Reduced to Size
NPS DN in mm NPS
DN
in
mm lbs
kg
lbs
kg
lbs
kg
1
⁄
4
8 0.540 14
1
⁄
8
6
2
1
⁄
4
57 – –
– – 0.25 0.11
3
⁄
8
10 0.675 17
1
⁄
8
6
2
1
⁄
2
64 – – 0.25 0.11 0.38 0.17
1
⁄
4
8
2
1
⁄
2
64 – – 0.25 0.11 0.38 0.17
1
⁄
2
15 0.840 21
1
⁄
8
6
2
3
⁄
4
70 – – 0.33 0.15 0.50 0.23
1
⁄
4
and
3
⁄
8
8 and 10 2
3
⁄
4
70 – – 0.33 0.15 0.50 0.23
3
⁄
4
20 1.050 27
1
⁄
8
6
3 76 – – 0.50 0.23 0.75 0.34
1
⁄
4
and
3
⁄
8
8 and 10 3 76 – – 0.50 0.23 0.75 0.34
1
⁄
2
15
3 76 – – 0.50 0.23 0.75 0.34
1 25 1.315 33
1
⁄
8
6
3
1
⁄
2
89 – – 0.66 0.30 1.00 0.45
1
⁄
4
and
3
⁄
8
8 and 10 3
1
⁄
2
89 – – 0.66 0.30 1.00 0.45
1
⁄
2
and
3
⁄
4
15 and 20 3
1
⁄
2
89 – – 0.66 0.30 1.00 0.45
Note: See page 148 for certifcation of raw material and marking.
