33
Chemical

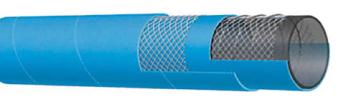

T509OE - 240 PSI Alfachem UHMWPETube
Chemical Hose
COUPLING SUGGESTIONS
Quick-Acting and combination nipples, preferably stainless steel, attached with bands.
H
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
APPLICATION
Suction and transfer service for a variety of chemicals and
acids. Will handle 98% of EXISTING CHEMICALS. See
Chemical Resistance Chart on pages 58 – 66.
COVER
Blue EPDM — abrasion and ozone resistant.
REINFORCEMENT
Synthetic textile cords with
4
highly fexible steel helix wires.
TUBE
Transparent UHMWPE (Ultra High Molecular Weight
Polyethylene).
TEMPERATURE RANGE
Normal recommended operating temperature is -4°F (-20°C) to
150°F (+65°C).
FEATURES
Meets FDA requirements
STANDARD LENGTH
100 feet
BRANDING
ALFAGOMMA – ITALY T509 16 BAR (240 PSI) – UHMWPE
CHEMICAL – S&D (in orange letters)
NOTE:
Can be Sterilized with 30 PSI saturated steam at 250˚F
for 30 minutes
- OPEN END
T509OE075
3/4
19
1.22
31
40
240
7 1/2
T509OE100
1
25
1.46
37
49
240
9
T509OE125
1 1/4
32
1.73
44
58
240
10 1/4
T509OE150
1 1/2
38
1.97
50
68
240
13 1/4
T509OE200
2
51
2.48
63
89
240
16 1/4
T509OE250
2 1/2
63
3.03
77
140
240
17 1/2
T509OE300
3
76
3.62
92
190
240
20 3/4
T509OE400
4
102
4.65
118
259
240
26 1/2
Nominal Specifcations
SERIES NO.
NOMINAL ID
NOMINAL OD
APPROX. WT.
MAX. REC.
MIN. BEND
(in.)
(mm)
(in.)
(mm)
lbs./100 ft.
WP (PSI)
RADIUS (in.)
WARNING
BEFORE USING
CHEMICAL HOSES
CONSULT CHEMICAL
RESISTANCE CHART
OR CONSULT
FACTORY.
IT IS ADVISABLE TO TEST THE TUBE MATERIAL UNDER ACTUAL SERVICE
CONDITIONS PRIOR TO USE.
NOTE: FOR MAXIMUM SERVICE LIFE, WE RECOMMEND THAT T509 HOSE BE
FLUSHED OUT AFTER EVERY USE.
