BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109 19
Creamery Washdown

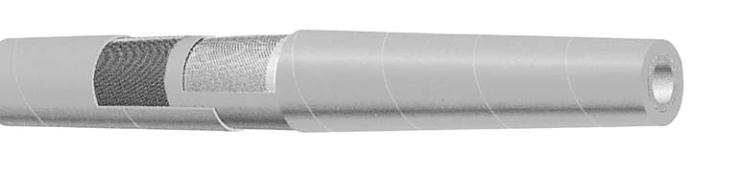

T351LL / T351LG - 150 PSI Premium Paper Mill
CreameryWash Down HoseWithTapered Nozzle
APPLICATION
For general wash down service, using hot water or low
pressure saturated steam in processing plants and facilities,
and in food and dairy plants.
COVER
White or green, heat, abrasion and ozone resistant EPDM
rubber.
REINFORCEMENT
High tensile textile cords.
TUBE
White EPDM rubber.
TEMPERATURE RANGE
-40°F (-40°C) to 248°F (+120°C)
STANDARD LENGTH
50 feet including 6" long built-in tapered nozzle*.
WORKING PRESSURE
Constant Pressure — 10 Bar (150 PSI)
*TAPERED NOZZLE HOLE SIZE
3/4" and 1" ID .................................................................. 3/8"
1 1/4" ID........................................................................... 1/2"
1 1/2" ID........................................................................... 5/8"
COUPLING SUGGESTIONS
Short shank, long shank couplings (NPT, GHT), barbed inserts attached with bands.
T351LL/LG075 3/4 19 1.22 31 43
T351LL/LG100 1 25 1.46 37 52
T351LL/LG125 1 1/4 32 1.81 46 77
T351LL/LG150 1 1/2 38 2.05 52 91
Nominal Specifcations
SERIES NO. NOMINAL ID NOMINAL OD APPROX. WT.
(in.) (mm) (in.) (mm) lbs./100 ft.
WHITE COVER
GREEN COVER
