Horizontal
Slide Kit
Clear-Flex II® Strip Doors
may be attached to a
galvanized steel trolley
system enabling the user
to slide the strip door away
from the doorway, thus
allowing unobstructed
traffic. Allow sufficient wall
space for curtain storage on either side of the door as
needed. Side wall mounted only.
www.aleco.com 9
Offset Bracket Kit
Enables Clear-Flex II® Strip Doors to be mounted on inside
of buildings in conjunction with conventional overhead
(roll-up) doors. Bracket projects 8” and is designed to be
welded or bolted into place. Brackets must be positioned so
as to not interfere with normal
door operations. Horizontal
cross member required, but
supplied by others. Safety
orange replacement strips (8” x
.080 x 14” long) may be
attached to bracket projection
for 3-sided enclosure. Field trim
to desired length.
Universal Mounting
Aleco's exclusive universal mounting system is available
in your choice of aluminum or galvanized steel. All
mounting holes are pre-drilled and all fasteners, except
those needed to attach our mounting system to the
existing building material, are supplied.
This innovative system, consisting of a specially designed
angle and face plates, allows the Clear-Flex II® Strip
Door to be mounted in either the lintel (inside frame,
underheader) or side wall (header) position (note
diagrams this page).
Each PVC strip is secured between the vertical side of the
angle and one foot face plate sections. Worn or damaged
strips may be easily replaced by simply removing the
necessary number of face plate sections, replacing the
appropriate strips and reattaching the face plates.
Side Wall
(outside and above
framing)
Under Lintel
(within framing)

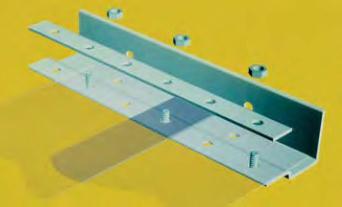

Universal Galvanized

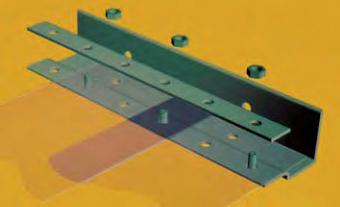

Universal Aluminum
WALK-IN
SYSTEM
MOUNTING
HARDWARE
Note: Although our
walk-in mounting
system was designed
with walk-in coolers
and freezers in mind,
it may be utilized
with any of our PVC
material up to a 6''0'
wide x 8'0'' high
finished strip door size.
UNIVERSAL MOUNTING
HARDWARE
