Structural Strength
Robotically welded heavy
gauge steel frame .
Enclosed Drive Spring
Drive mechanism is enclosed
for protection against the
environment.
Long Life Drive Spring
Declutching arbor virtually
eliminates possibility of spring
damage due to reverse winding
of reel spool.
Adjustable Guide Arm
Multiple guide arm positions
for versatile uses and easier
field adjustment.
BUMPER ASSEMBLIES FOR CORD REELS
PART
NUMBER
OUTSIDE DIA.
OF CORD
CORD SPECIFICATIONS
AWG / mm2 # Cond. Type
600193 .320” - .530” 16 1.33 3 SJO
1-HR1004-A .438” - .624” 12 3.32 3 SJO
600267 .645” 10 5.37 3 SO
1-HR1004 .625” - .749” 12 3.32 3 SO
3-HR1004-3 1.06” - 1.30” 6 8.00 3 SO

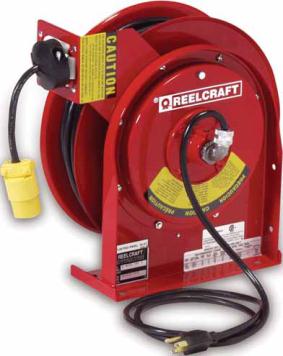

SERIES 4000 and 5000 CORD REELS
UL LISTED
MODEL NUMBER SIGNIFICANCE
This chart is for reference purposes only. Reels cannot
be ordered by selecting from this chart. Please see
Selection Charts on pages 40-41 or consult manufactur-
er for any questions about option combinations.
L 4 0 5 0 1 6 3 3
LENGTH OF CORD
00 = W/O CORD
35 = 35 FEET
45 = 45 FEET
50 = 50 FEET
STYLE NUMBERS
NONE. OPEN END
1 = INCANDESCENT LAMP
2 = FLUORESCENT LAMP
3 = SINGLE RECEPTACLE
4 = R.V. PLUG (M)
5 = INCANDESCENT
NON-SPARKING
6x = FLUORESCENT
EXPLOSION PROOF
7 = DUPLEX OUTLET
BOX (F) W/GFCI
8 = FLUORESCENT
W/OUTLET
NO. OF CONDUCTORS
2 = TWO CONDUCTOR
3 = THREE CONDUCTOR
LATCH TYPE
L = LATCHING
C = CONSTANT TENSION
REEL SERIES
40 = 4000 SERIES REEL
45 = 4500 SERIES REEL
55 = 5500 SERIES REEL
57 = 5700 SERIES REEL
WIRE SIZE
10 = 10 GAUGE
12 = 12 GAUGE
16 = 16 GAUGE
Reelcraft offers
eight styles of outlets
and lamps
• Single receptacle
• Duplex outlet box w/ GFCI
(F) - 2 styles available
• R.V. plug
• Fluorescent - 2 styles available
• Incandescent - 2 styles available
Easy to Mount
Attaches to most structurally sound
surfaces. Edges are curved for safety.
NOTE: Swing brackets should be used
if cords are pulled at more than 45°,
see page 49.
Adjustable Bumper Stop
Allows any desired length of
cord to be maintained outside
the reel.
Corrosion-Resistant
Steel components are
individually powder coated
to virtually eliminate
corrosion.
CSA CERTIFIED
FOR REFERENCE
ONLY
600993
L 4035 163 3
