SPECIFICATIONS
HOSE
CAPACITY
SERIES 41 SERIES 42 SERIES 43 SERIES 44
in / mm in / mm in / mm in / mm
HOSE I.D. 1 25 1 ¼ 32 1 ½ 38 2 51
HOSE O.D. 19 / 16 40 113 / 16 46 2 1/16 52 2 9/16 65 DIMENSIONS

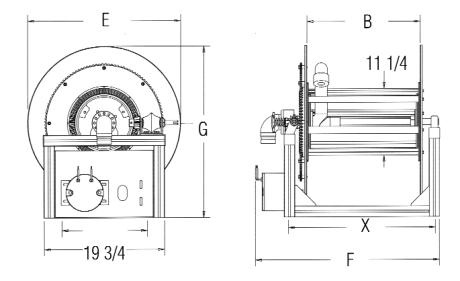

MODEL HOSE LENGTH B E F Bevel F Electric G X
ft / m ft / m ft / m ft / m in / mm in / mm in / mm in / mm in / mm in / mm
4 1131 1LC 80 25 50 15 __ __ __ __ 13 330 21 533 23.75 603 25.75 654 24 559 18.75 476
4 2081 1LC 80 25 50 15 __ __ __ __ 8 203 25 635 17.75 451 19.75 502 26 660 13.75 349
4 1171 1LC 100 30 80 25 50 15 __ __ 17 432 21 533 26.75 679 28.75 730 24 559 22.75 578
4 2101 1LC 100 30 80 25 50 15 __ __ 10 254 25 635 19.75 502 21.75 552 26 660 15.75 400
4 1321 1LC 200 60 150 45 100 30 __ __ 32 813 21 533 41.75 1060 43.75 1111 24 559 37.75 959
4 2191 1LC 200 60 150 45 100 30 __ __ 19 483 25 635 28.75 781 30.75 781 26 660 24.75 629
4 3131 1LC 200 60 150 45 100 30 40 12 13 330 29 737 26.75 679 28.75 730 30 762 18.75 476
4 3221 1LC 325 100 250 75 200 60 60 18 22 559 29 737 31.75 806 33.75 857 29 737 27.75 705
4 4171 1LC 350 105 275 84 200 60 80 24 17 432 33 838 26.75 679 28.75 730 34 864 22.75 578
Verify application dimensions and weight requirements prior to ordering.
Installation Note: For the warranty to be valid, a flexible connector MUST be used between the swivel and the inlet piping.
FEATURES
Standard straight ball bearing swivel joint with female
NPT threads and 2” victaulic groove. 90° swivel
available, no extra charge.
Hand crank, bevel crank, gear and chain drives in chart.
Also available as standard, explosion proof 12VDC, 115 AC,
hydraulic and pneumatic motor.
Powder coated steel flanges included, aluminum also
available as standard.
Open spool spacer allows for easy access to reversible goose
neck and open spool design allows for hose flexing under
pressure without spool distortion.
Plumbing and motor shown on left side; however, any
configuration is available as a standard order.
Standard colors are powder coat red with black frame.
Other colors available upon request.
Max pressure: 600 psi. Standard seals maximum temperature
174° F (79° C) and minimum temperature -20° F (-29° C).
Extreme temperature seals maximum temperature 400° F
(204° C) and minimum temperature -50° F (-45° C).
Chain/gear guard is a recommended option, sold separately.
Contact Reelcraft for guard, switch and roller brackets.
Also available in
standard drive types:
Explosion proof
12VDC
24VDC
115VAC
Pneumatic Motor
Hydraulic Motor
Auxiliary Bevel Crank
Part Number Options
Hose ID:
1 = 1” hose
2 = 1 ¼” hose
3 = 1 ½” hose
4 = 2” hose
Drive Type:
CG = Hand Crank
BG = Bevel Crank (only)
DH = 12VDC, Gear Drive
EH = 12VDC, Chain Drive
Patent Pending
Shown with optional
accessories: hose
and roller bracket
sold separately.
4 1131 1LC
Series 40
12
Straight swivel
is standard on
Series 40 reels.
90° swivel
available upon
request.
Made in USA
North America: 800-444-3134 Asia: +63 (45) 599-3721
Europe: +44 (0) 1536 406999 Latin America: 260-489-1685
www.reelcraft .com Quick Ship Item
