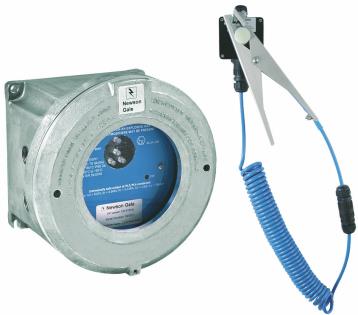

Earth-Rite® Plus Static Grounding System
The Earth-Rite® Plus provides positive verification of a static ground connection on a wide range of industrial plant equipment including
railcars, drums, containers, tanker trucks and other conductive equipment. Whenever flammable liquids or powders are transferred,
or wherever there is a risk of conductive plant items becoming isolated from earth within hazardous locations, effective grounding and
bonding is necessary to ensure safe dissipation of static electricity to prevent fires and explosions which can be ignited by static. When
connected to a drum or other conductive equipment, the intrinsically safe monitoring circuit verifies a low resistance connection and
dissipation path to ground. Good connection is confirmed by pulsing LED indicators, releasing a pair of voltage free output contacts and
enabling the transfer of product to start.
•USA and Canadian CSA certification: Associated Equipment [Exia] for use in
Class I, Div 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III, Div 1.
•IP 66 / NEMA 4X cast aluminum enclosure
•red/pulsing green indication LED's
•intrinsically safe monitoring to <10 ohms
•2 interface relay contacts
•input power requirement 110/120 VAC or 220/240 VAC or 12/24 VDC
•VESX90-IP 2-pole heavy duty stainless grounding and monitoring clamp with
spiral cable in-line-quick-connect fittings attached and tungsten carbide pointed
contacts to help ease metal to metal contact
Part # Description
PLUSMUA1A3 Earth-Rite® Plus II static grounding system
•every unit supplied with full installation and operating manual
•easy to install, operate and maintain
•explosion proof controller with intrinsically safe monitoring mod-
ule
•universal grounding clamp with 32' of 2 conductor Hytrel™
protected cable
•ground connection junction box with stowage pin for universal
grounding clamp
pulsing LEDs confirm
positive ground condition
