17 Dixon 877.963.4966 ♦ dixonvalve.com
Couplers
Boss-Lock Type B Couplers
Size
356T6
Aluminum
Part #
Brass
Part #
Plated Iron
Part #
316 SS
Part #
¾" x½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
6"
---
---
AB100
AB125
AB150
AB200
AB250
AB300
AB400
AB600
BB050
BB075
BB100
BB125
BB150
BB200
BB250
BB300
BB400
---
---
---
IB100
---
IB150
IB200
---
IB300
IB400
---
RB050BL
RB075BL
RB100BL
RB125BL
RB150BL
RB200BL
---
RB300BL
RB400BL
---
female coupler x male NPT
aluminum
Size ¾" x ½" ¾" 1" 1¼" 1½" 2" 2½" 3" 4" 5" 6" 8"

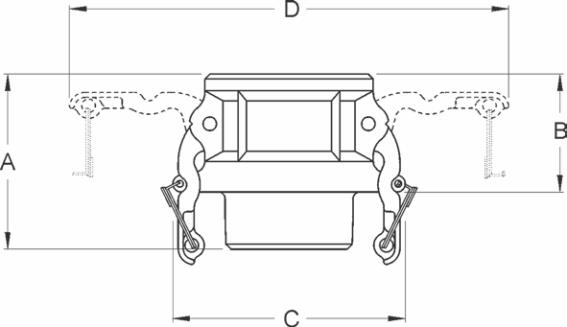

A overall length 2¼ 2-5/16 2-17/32 3-5/32 3-5/32 3-9/32 3-7/8 4 4-1/16 --- 4-23/32 7-1/8
B coupler length 1-5/16 1-13/32 1-17/32 1-29/32 1-29/32 2-7/32 2¼ 2-5/16 2-5/16 --- 2-19/32 2-13/16
C distance across safety lugs 2-25/32 2-25/32 2-29/32 3-5/8 3-29/32 4-5/16 4-13/16 5-9/16 6-11/16 --- 9-5/8 11-5/8
D distance across open cam arms 5-13/32 5-13/32 5-9/16 7-15/32 7-25/32 8-5/32 8-21/32 9-29/32 11 --- 16-5/32 18-5/32
3576T6 aluminum, brass and iron dimensions
Size ¾" x ½" ¾" 1" 1¼" 1½" 2" 2½" 3" 4" 5" 6" 8"
A overall length 2¼ 2¼ 2-9/16 3-3/16 3-7/32 3¼ --- 3-15/16 4-1/16 --- --- ---
B adapter length 1-5/16 1-5/16 1-9/16 1-29/32 1-29/32 2-3/16 --- 2-5/16 2-5/16 --- --- ---
C distance across safety lugs 2-25/32 2-25/32 2-29/32 3-5/8 3-29/32 4-5/16 --- 5-9/16 6-11/16 --- --- ---
D distance across open cam arms 5-13/32 5-13/32 5-9/16 7-15/32 7-25/32 8-5/32 --- 9-29/32 11 --- --- ---
316 stainless steel dimensions
