Page 13 - Dixon Cam and Groove Catalog 2013

13

Dixon

877.963.4966

♦

dixonvalve.com

Couplers

Dixon Type D Couplers

Size

356T6

Aluminum

Part #

Aluminum

Hard Coat

Part #

Brass

Part #

Unplated Iron

Part #

316 SS

Part #

½"

¾"

1"

1¼"

1½"

2"

2½"

3"

4"

5"

6"

8"

50-D-AL

75-D-AL

100-D-AL

125-D-AL

2

150-D-AL

200-D-AL

250-D-AL

2

300-D-AL

400-D-AL

500-D-AL

600-D-AL

800-D-AL

1

---

150-D-ALH

200-D-ALH

---

300-D-ALH

400-D-ALH

---

600-D-ALH

---

50-D-BR

75-D-BR

100-D-BR

125-D-BR

2

150-D-BR

200-D-BR

250-D-BR

2

300-D-BR

400-D-BR

500-D-BR

600-D-BR

---

150-D-MI

200-D-MI

---

300-D-MI

400-D-MI

500-D-MI

---

50-D-SS

75-D-SS

100-D-SS

125-D-SS

150-D-SS

200-D-SS

250-D-SS

300-D-SS

400-D-SS

500-D-SS

600-D-SS

---

1

Dixon and Boss-Lock cam and groove couplings

do not interchange in the 8" size.

The 8" Dixon design has 4 cam arms.

2

Parts are manufactured in Canada.

female coupler x female NPT

aluminum

Size

½"

¾"

1"

1¼"

1½"

2"

2½"

3"

4"

5"

6"

8"

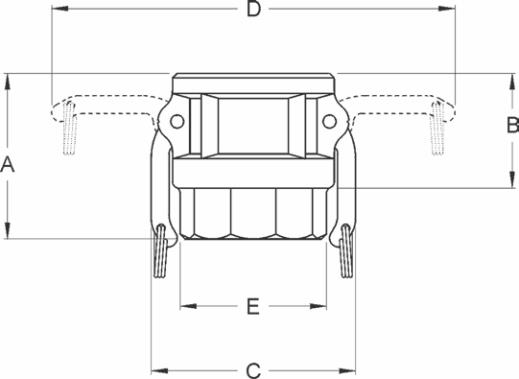

A overall length

2

2-5/32 2-9/16 2-23/32 2-27/32 3-5/16 3-3/8

3-5/8

3-13/16 3¾

4-11/32 5-27/32

B coupler length

1-11/32 1¼

1-9/16 1-13/16 1-13/16 2-7/32 2-11/32 2-5/16 2-5/16 2-5/16 2-5/8

3-13/16

C distance across closed cam arms 1-17/32 2-1/8 2-7/16 3-3/8

3-9/16 3-15/16 4-5/8

5-15/32 6-9/16 7-9/16 10-3/32 12-1/32

D distance across open cam arms 2-5/8

4-5/16 5-3/16 7-7/16 7-5/8

8-1/32 8-9/16 10-3/32 11-3/16 12-3/16 16¼

19-31/32

E distance across flats

1-1/16 1-9/32 1-19/32 2-1/32 2-3/16 2-5/8

3-7/32 3-7/8

4-7/8

6-9/16 * 7-21/32 * 10-1/16 *

3576T6 aluminum, brass and iron dimensions

Size

½"

¾"

1"

1¼"

1½"

2"

2½"

3"

4"

5"

6"

8"

A overall length

2

2-1/16

2½

2-27/32 2-27/32 3-3/16

3¾

3-19/32 3-11/16 3-13/16 4-1/16

---

B adapter length

1-7/32

1¼

1-9/16 1-29/32 1-29/32 2-7/32

2¼

2-9/32 2-9/32 2-5/16 2-19/32

---

C distance across closed cam arms 1-17/32 2-1/8

2-7/16

3¼

3-9/16 3-15/16 4-7/16 5-15/32 5-15/32 7-9/16 10-3/32

---

D distance across open cam arms 2-5/8 4-5/16 5-3/16 7-5/32 7-7/16 7-13/16 8-11/32 9-15/16 11-1/32 12-1/32 16¼

---

E distance across flats

1-3/32 1-5/16 1-5/8

1-15/16 2-3/16 2-5/8

3-1/8

3¾

4-7/8

6-7/16 * 7-9/16 *

---

316 stainless steel dimensions

* distance across lugs
