General Purpose
For applications involving both high temperatures and the presence of chlorides, or any other special applications, contact us.
We will be glad to help solve your particular fastening problem. Our toll free Help Line is 1-800-221-0100. Ask for Clamp Product Engineering.
4
SAE Ideal
Tridon Ideal
Tridon Ideal
Tridon
English (in.) Metric (mm) Fits Hose I.D.
Sizes Part No.
Part No.
Part No.
Part No.
Part No.
Part No.
Min. Dia.
Max. Dia. Min. Dia. Max. Dia.
Min.
Max.
57
611
67-1
625
(1)
67-5
620
6
5706 611-006 6706-1 625-006 6706-5 620-006
3/8
7/8
10
22
5/16
3/8
8
5708 611-008 6708-1 625-008 6708-5 620-008
7/16
1
11
25
5/16
1/2
10
5710 611-010 6710-1 625-010 6710-5 620-010
1/2
1 1/16
13
27
3/8
5/8
12
5712 611-012 6712-1 625-012 6712-5 620-012
1/2
1 1/4
13
32
3/8
3/4
16
5716 611-016 6716-1 625-016 6716-5 620-016
11/16
1 1/2
18
38
3/4
7/8
20
5720 611-020 6720-1 625-020 6720-5 620-020
3/4
1 3/4
19
44
3/4
1 1/8
24
5724 611-024 6724-1 625-024 6724-5 620-024
1
2
25
51
7/8
1 3/8
28
5728 611-028 6728-1 625-028 6728-5 620-028
1 1/4
2 1/4
32
57
1 1/4
1 5/8
32
5732 611-032 6732-1 625-032 6732-5 620-032
1 1/2
2 1/2
38
63
1 1/2
1 7/8
36
5736 611-036 6736-1 625-036 6736-5 620-036
1 3/4
2 3/4
44
70
1 3/4
2
40
5740 611-040 6740-1 625-040 6740-5 620-040
2
3
51
76
2
2 1/4
44
5744 611-044 6744-1 625-044 6744-5 620-044
2 1/4
3 1/4
57
82
2 1/4
2 1/2
48
5748 611-048 6748-1 625-048 6748-5 620-048
2 1/2
3 1/2
64
89
2 1/2
2 3/4
52
5752 611-052 6752-1 625-052 6752-5 620-052
2 3/4
3 3/4
70
95
2 3/4
3
56
5756 611-056 6756-1 625-056 6756-5 620-056
3
4
76
101
3
3 1/2
60
5760 611-060 6760-1 625-060 6760-5 620-060
3 1/4
4 1/4
83
108
3 1/4
3 1/2
64
5764 611-064 6764-1 625-064 6764-5 620-064
2 1/2
4 1/2
64
114
2 1/2
4
72
5772 611-072 6772-1 625-072 6772-5 620-072
3
5
76
127
3
4 1/2
80
5780 611-080 6780-1 625-080 6780-5 620-080
3 1/2
5 1/2
89
140
3 1/2
5
88
5788 611-088 6788-1 625-088 6788-5 620-088
4
6
102
152
4
5 1/2
96
5796 611-096 6796-1 625-096 6796-5 620-096
4 1/2
6 1/2
114
165
4 1/2
6
104
57104 611-104 67104-1 625-104 67104-5 620-104
5
7
127
178
5
6 1/2
(1)
Automotive Series “HSS”
Additional sizes available - Contact Ideal for information
1/2” BAND CLAMPS
57 / 611
Series
67-1 / 625
Series
67-5 / 620
Series

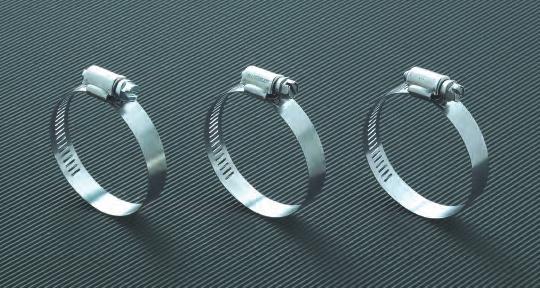

1/2" band clamps are suitable
for most common home and
automotive applications.
Ideal 57 Series / Tridon 611 Series
Screw: 5/16" hex-head.
Plated carbon steel.
Band and housing: 1/2" design.
201/301 stainless steel.
Ideal 67-1 Series / Tridon 625 Series
Tridon Automotive Series “HSS”
Screw: 5/16" hex-head.
410 stainless steel (Ideal).
305 stainless steel (Tridon).
Band and housing: 1/2" design.
201/301 stainless steel.
Ideal 67-5 Series / Tridon 620 Series
Screw: 5/16" hex-head.
High-nickel grade stainless steel.
Band and housing: 1/2" design.
High-nickel grade stainless steel.
Measurements in illustrations are in inches [millimeters]
1/2" BAND CLAMPS
CLAMPING RANGE
