We recommend a minimum of all 300 grade stainless steel clamps for marine applications.
For applications directly over galvanized steel, we recommend an intermediate layer of non-conductive material such as vinyl electrical tape.
Ideal 61 Series (Tridon N/A)
• 300 grade stainless steel
construction for excellent
corrosion resistance
• Welded construction for
superior strength
• Quick, easy installation
• Permanent, tamper-proof 360° seal
• Compatible with most clinching tools
How to Determine Proper Clamp Size:
Measure actual O.D. of the hose on the
fitting. Select the nominal size clamp
nearest to, but always larger than, the
O.D. of the hose on the fitting.

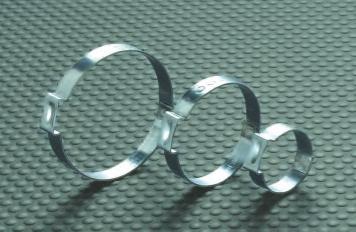

SINGLE EAR PINCH CLAMPS
Measurements in illustrations are in inches [millimeters]
Ideal
Nominal
English (in.) Metric (mm)
Part No.
Diameter
Min. Dia.
Max. Dia.
Min. Dia.
Max. Dia.
61
61198
3/4
0.669
0.779
17
20
61210
13/16
0.716
0.827
18
21
61256
1
0.898
1.008
23
25
61271 1 1/16
0.945
1.067
24
27
61316
1 1/4
1.122
1.244
29
31
61331 1 5/16
1.181
1.303
30
33
61346
1 3/8
1.240
1.362
32
34
61410
1 5/8
1.492
1.614
38
41
61425 1 11/16
1.551
1.673
40
42
61485
1 7/8
1.787
1.909
46
48
PINCH CLAMPS CLAMPING RANGE
Pinch Clamps are designed to fit most popular polyethylene and polybutylene water service lines. They're perfect for
sprinkler systems, irrigation systems and most other low pressure applications.

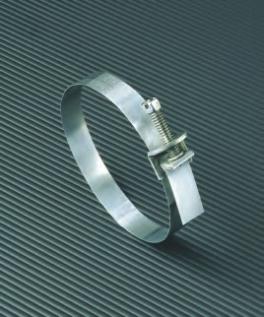

WRAPLOCK
®
CLAMPS
Ideal 59 Series (Tridon N/A)
1/2" wide galvanized steel band. Plated carbon steel screw and buckle. 5/16" hex-head screw
.
Made in one piece.
Conforms to any shape. Covers 1" (25mm) to 14 1/2" (305mm) diameter to 48" (1219mm) length.
SAE Ideal
English (in.)
Metric (mm)
Length
Sizes Part No. Min. Dia. Max. Dia. Min. Dia. Max. Dia. English (in.) Metric (mm)
59
12 5912
1
3 1/2 25
89
12
305
15 5915
1
4 1/2 25 114
15
381
18 5918
1
5
25 127
18
457
24 5924
1
7
25 178
24
610
30 5930
1
9
25 229
30
762
48 5948
1
14 1/2 25 368
48
1219
