239 DPL410 877.963.4966 • www.dixonvalve.com
A
Do not use pipe nipples as hose inserts.
Norgren Series 1 Three-Way Shut-Off Valves
Size Part # Price/E Opt
Qty
1/8" x 1/8"
1/4" x 1/4"
3/8" x 3/8"
1/2" x 1/2"
3/4" x 3/4"
1" x 1"
BCN12
BCN25
BCN37
BCN50
BCN75
BCN100
$1.91
2.37
3.20
4.78
6.11
14.74
100
100
50
25
100
50
Size Part # Price/E Opt
Qty
1" x 1"
1-1/4" x 1-1/4"
1-1/2" x 1-1/2"
2" x 2"
CN100
CN125
CN150
CN200
$3.40
4.35
5.30
7.25
10
10
10
10
Size Part # Price/E
1/4"
3/8"
1/2"
T73E-2
T73E-3
T73E-4
$63.60
63.60
63.60
Brass Hex Nipples
Carbon Steel Close Nipples

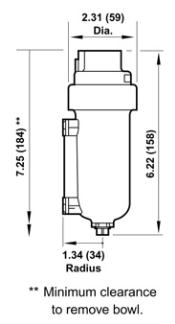

Port Size Part # Price/E
1/2" 17-016-107 $202.40
• metal bowl
• drain is ported to 1/8" NPT
• inlet for metal bowl: 250 PSIG at ambient temperature (70°F)
Used in compressed air systems to automatically expel liquids from
piping systems. Installed at low points in piping and at end of pipe
network, where water is likely to accumulate.
• Shut-off valves, typically attached to the inlet end of a combination unit, are manually operated,
slide type valves that open and close with a short 1" movement of the slide.
• The valve slide can be locked in the closed position with a customer supplied padlock.
• The standard valve is a 3-way valve that exhausts downstream air in the closed position.
• recommended pressure is 250 PSI at ambient temperature (70°F)
• for use with 73 Series filters, regulators and lubricators on pages 225-235.
• conforms to OSHA lockout regulation
• Stainless steel close nipples are available on pages 284 and 548.
• Brass close nipples are available on page 304.
