204
DPL410
877.963.4966 • www.dixonvalve.com
E
Air
FRL's are designed for air service only, unless otherwise indicated.
SCFM ratings at 150 PSIG inlet pressure.

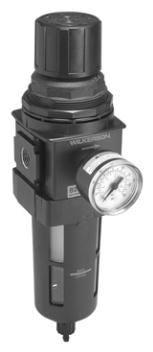

Wilkerson EconOmist
®
Type Lubricators
•
0-125 PSIG adjusting range
•
5 micron element
•
6 oz. bowl
•
self-relieving standard
•
spring-loaded diaphragm
•
Two ¼" gauge ports located on the front and rear faces of
the body. These ports may be used as additional regulated
ports or for pressure gauges. Plug unused port(s).
•
supplied with GC230 gauge
•
maximum operating conditions:
transparent bowl:
150 PSIG
(10.3 bar) and
32°F
to
125°F
(0°C to 52°C)
metal bowl:
250 PSIG
(17.2 bar) and
32°F
to
150°F
(0°C to
65.5°C)
•
To increase regulated pressure, pull adjusting knob and turn
clockwise. To reduce pressure, turn knob counter clockwise.
To lock knob, push down.
4.09 (104)
2.90 (74)
11.44 (291)
2.00 (51)
Bowl Removal
Clearance
with metal bowl
Designed so that all the oil flow observed in the sight dome is broken into a mist and delivered via the airflow to the application.
This lubricator allows the user to fill or replenish the oil in the bowl without interrupting airflow or bleeding pressure from the
system. Once the oil-fill cap is removed, the bowl is depressurized and isolated from line pressure, and the bowl itself can then
be removed, if desired, for faster refill. The bowl can also be filled right to the top.
•
5 oz. bowl
•
full view sight dome
•
fill under pressure design
•
maximum operating conditions:
transparent bowl:
150 PSIG
(10.3 bar) and
32°F
to
125°F
(0°C to 52°C)
metal bowl:
200 PSIG
(13.8 bar) and
32°F
to
150°F
(0°C to
65.5°C)
with metal bowl
See pages 220-221 for filter/regulator accessories.
See pages 218-220 for lubricator accessories.
Size SCFM
With Transparent Bowl and Guard
With Metal Bowl with Sight Glass
Automatic Drain
Manual Drain
Automatic Drain
Manual Drain
Part #
Price/E
Part #
Price/E
Part #
Price/E
Part #
Price/E
3/8"
1/2"
3/4"
140
165
175
B28-03AG
B28-04AG
B28-06AG
$260.70
260.70
260.70
B28-03MG
B28-04MG
B28-06MG
$208.05
208.05
208.05
B28-03AGMB
B28-04AGMB
B28-06AGMB
$273.30
273.30
273.30
B28-03MGMB
B28-04MGMB
B28-06MGMB
$223.00
223.00
223.00
Size SCFM
With Transparent Bowl
With Metal Bowl
Part #
Price/E
Part #
Price/E
1/4"
3/8"
1/2"
36.1
58.5
64.0
L16-02A
L16-03A
L16-04A
$128.05
128.05
128.05
L16-02AMB
L16-03AMB
L16-04AMB
$144.95
144.95
144.95
SCFM ratings at 100 PSIG inlet pressure.
