New Products
A
New
Products
Accuracy:
.................................................................
±1°
Wetted Surfaces:
..............................
316L stainless steel
Surface Finish:
..........................
R
a
max.is 8 microinches
Case Material:
....................................
304 stainless steel
Dial Size:
....................................................
3½" diameter
Lens Material:
......................................
¼" polycarbonate
Temperature Limits:
................................
-58°F to 302°F
Ambient Operating Limits:
.......................
-4°F to 140°F
LCD display:
...........................................................
0.6"
Resolution:
...................................
0.1° (-58° thru 199.9°)
Battery size / life:
. .........................
standard AAA/3 years
Shipping weight:
.......................................
approx. 3 lbs.
Product Specifcations
Model Number Breakdown
Sanitary Digital Thermometers
Ordering Information
DT-2U-BT-DF-10
Series
Fitting Size and Type
Mount Type
Display
Up-Date Interval
Series
DT
.........Sanitary digital thermometer
Fitting Type
*
sizes available: .50, .75, 1.5, 2, 2.5, 3 and 4
I
. ............male I-Line
T
............#13H captive nut and #14 Bevel Seat
U
............Clamp
*
specify size then type, i.e. 1.5U.
Mount type
BT
.........bottom
RT
.........right side
LF
..........left side
TP
. ........top
BK
.........back
BTR
......remote ftting
Display
DF
.........F (Fahrenheit)
standard
DC
.........C (Celsius)
Up-Date Interval
1
............one second (
1 year battery life
)
10
..........ten second (
3 year battery life
)

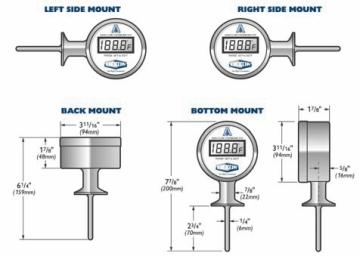

Dimensions
Size Probe
Length Code
½"
1-1/4"
.50U
¾"
2-3/8"
.75U
1"
2-5/8"
1U
1½"
2-3/4"
1.5U
2"
3-1/2"
2U
2½"
3-1/2"
2.5U
3"
3-3/4"
3U
4"
4-1/2"
4U
Ordering code shown with
clamp confguration "U".
See ordering info for other
types available.
