Butterfy Valves
S
Butterfy
Valves

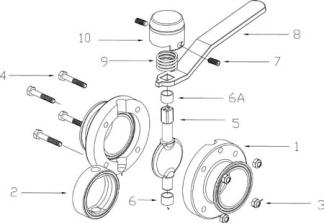

Item #
Description
Material
Quantity
1
body half
316L stainless
2
2
seat
silicone, EPDM, FKM
1
3
hex nut
304 stainless
4
4
bolt
304 stainless
4
5
disc
CF-3M stainless
1
6
bushing
PTFE
1
6a
split bushing
PTFE
1
7
hex socket screw
304 stainless
2
8
handle
CF8 stainless
1
9
spring
304 stainless
1
10
hub
CF8 stainless
1
Repair Kits
B5104 Series Butterfy Valves
Bill of Materials
Repair Kit contains:
(1) seat
(1) bushing
(1) split bushing
Size
Red Silicone
Black EPDM
Black FKM
1"
B5104-RKS100
B5104-RKE100
B5104-RKV100
1½"
B5104-RKS150
B5104-RKE150
B5104-RKV150
2"
B5104-RKS200
B5104-RKE200
B5104-RKV200
2½"
B5104-RKS250
B5104-RKE250
B5104-RKV250
3"
B5104-RKS300
B5104-RKE300
B5104-RKV300
4"
B5104-RKS400
B5104-RKE400
B5104-RKV400
