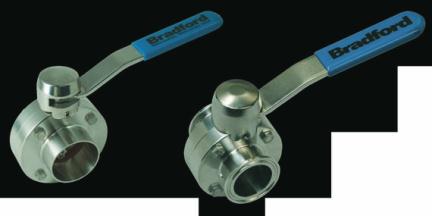

B5104 Series Butterfy Valves
Product Specifcations
•
100% tested / 100% inspected
•
all wetted surfaces are sanitary fnished to < 32R
a
•
feld serviceable (no special tools required)
•
seat materials available include: silicone, EPDM, FKM
•
PTFE bushings reduce friction and increase cycle life
•
minimal line pressure: 0.4 inches Hg vacuum @ 68°F
•
operating temperature range:
15°F
to
200°F
Information supplied based on water media @ 68°F
Size
Break
Torque
(in-lbs.)
Silicone
Break
Torque
(in-lbs.)
EPDM
Break
Torque
(in-lbs.)
FKM
Pressure
Rating
(PSI)
Flow
Coeffcent
(C
V
)
Weight w/
standard
handle
(lbs.)
1"
50 105 45 140
23
1.8
1½"
60 135 55 140
80
1.2
2"
175 180 125 140 230
1.6
2½" 250 260 200 110 264
2.0
3"
300 305 250 110 372
2.4
4"
350 360 300 85
800
4.8
