Spring Check Valves

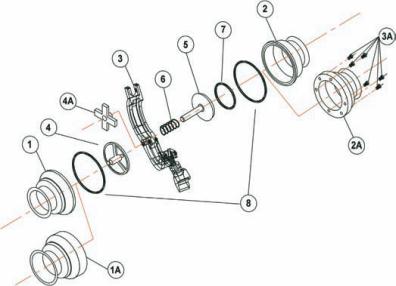

Bill of Materials
* 4" uses bolted construction instead of clamp
Item # Description Material
Quantity Required
½" - ¾" 1" - 3" 4" *
1 upper body housing 316L stainless 1 1 n/a
1A upper body housing 316L stainless n/a n/a 1
2 lower body housing 316L stainless 1 1 n/a
2A lower body housing 316L stainless n/a n/a 1
3 single pin clamp CF8 stainless 1 1 n/a
3A body bolt 304 stainless n/a n/a 6
4 fow plate CF8M stainless n/a 1 1
4A fow plate CF8M stainless 1 n/a n/a
5 plunger 316L stainless 1 1 1
6 spring 316L stainless 1 1 1
7 stem O-ring Viton® 1 1 1
8 body O-ring NBR (Buna) 1 2 1
*
