CHEMJOINT™ COUPLINGS & MALE STEMS
Description
ChemJoint Couplings and Male Stems create an extremely
versatile chemical hose assembly system. The system solves
problematic cam and groove issues such as pressure,
temperature, side load, viscosity, line dedication and ergonomics.
Features and Benefits
• Graduated serration pattern -
sharper near the interlock,
rounder near the end. Grips
and seals plastic lined chemical
hose without cutting through
the tube.
• Interlock-groove locks ferrule
into place for the ultimate in
holding power.
• Crimped assemblies are low
profile and eliminate sharp
edges from bands.
• Viton seal allows coupling to
meet pressure ratings with nut
hand tightened.

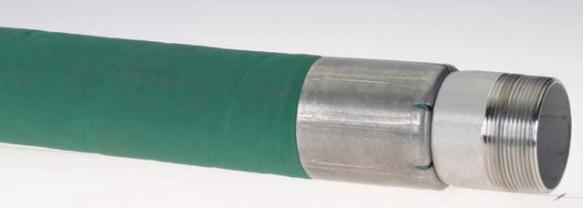

Recommended
hose attachment
• Interlocking ferrules
• Preformed bands (Section I)
(left)

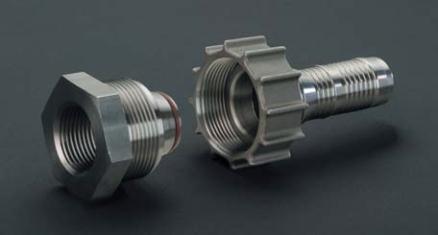

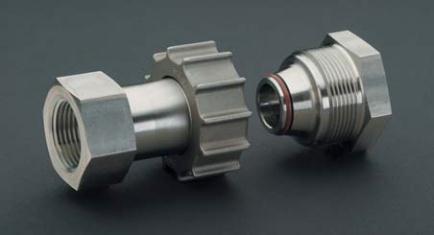

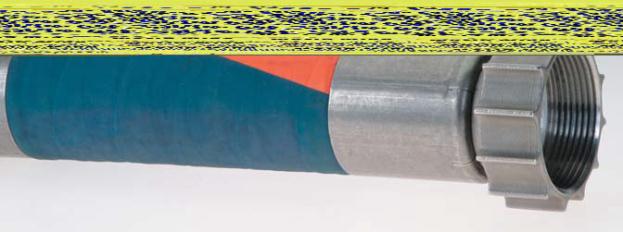

1” ChemJoint
Coupling Set
(right)
1” ChemJoint
Union with
Viton Spud

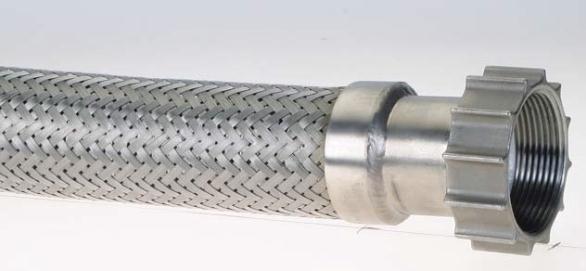

ChemJoint Couplings are
available with weld ends for
use with metal hose.
ChemJoint/Male Stem Ferrule Chemical 350 400 450 325 250 250 225 225 200 – –
ChemJoint/Male Stem Ferrule Rubber 350 400 450 425 400 350 325 300 250 – –
ChemJoint Weld-On and Union None None – 800 800 – 650 600 – 600 – – –
Hose System Components Hose Size
Fitting/Coupling Attachment Hose Type2 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 6 8
MAX. SYSTEM WORKING PRESSURE (PSI @ 70°F) SEE NOTE 1
See footnotes 1 and 2 on Page 1
