BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109
25
Steam

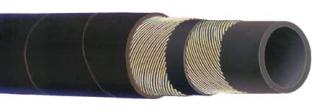

T333AA - 250 PSI Refnery Steam Hose
REFER TO STEAM HOSE SAFETY FACTS PAGE 22
COUPLING SUGGESTIONS
Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking
clamps.
H
Kuriyama offers a full line of ground joint couplings and clamps. Refer to current Kuriyama-Couplings™ and Accessories
Catalog for type and pricing.
H
Universal quick-acting couplings should not be used with steam hose.
APPLICATION
For use with saturated steam up to 406°F. in refneries,
shipyards and chemical plants which require an oil-resistant
cover.
Use with superheated steam will shorten hose life.
Proper draining of steam hose after each use will increase
service life.
Not recommended for washdown applications where
detergent or oils are present.
COVER
Black CSM - Abrasion, Ozone and Hydrocarbon resistant -
Pin-pricked cover to allow venting.
REINFORCEMENT
High tensile spiral steel wire.
TUBE
Black, heat-resistant EPDM rubber.
Not for steam cleaner use.
TEMPERATURE RANGE
-40°F (-40°C) to 406°F (+210°C)
STANDARD LENGTH
100 feet
WORKING PRESSURE
Constant Pressure — 17 Bar (250 PSI)
BRANDING
Embossed brand ALFAGOMMA – ITALY – T333 – 17 BAR (250
PSI) STEAM – DRAIN AFTER USE - QTR/YEAR
H
T333AA
BLACK COVER
Warning
Handling steam is very hazard-
ous. If it is not properly controlled
it can cause property damage,
injury or even death. Selection
for the proper application, usage,
and maintenance will not only
increase hose life but will insure
safe operation for the user.
T333AA075
3/4
19
1.30
33
54
7 1/2
T333AA100
1
25
1.54
39
67
10
Nominal Specifcations
SERIES NO.
NOMINAL ID
NOMINAL OD
APPROX. WT.
MIN. BEND
(in.)
(mm)
(in.)
(mm)
lbs./100 ft.
RADIUS (in.)
H
